Frame Progress, Tack Welded Today

Brian C — Posted on The Cyclekart Club
Saturday March 21, 2015 11:00 PM

Nice day today so, I worked on Tacking together my frame.
took about 2 hrs in prep time clamping ,leveling, making sure rails were square.
This was the hard part because my Frame is not a rectangle, the front is smaller then the back. I had to match the angles at the weld points.Looks like it worked
out OK.

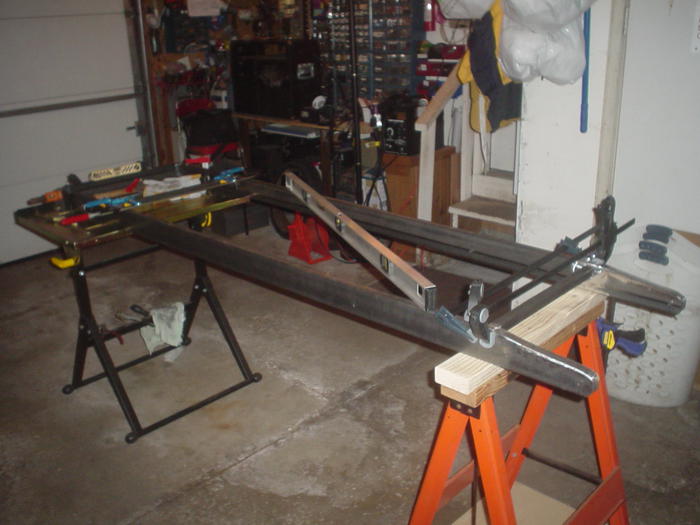

Prepping

Prepping

Front veiw

Front veiw

Back Veiw

Back Veiw

Member Comments on Journal Entry: Frame Progress, Tack Welded Today ↵

2015-03-22 14:21:23 # 24816

Comment by Don Nothwang/c

Beware,when welding the front brace up,put a temp brace between the front of the frame.Mine wanted to bend in when I welded it

2015-03-22 14:33:15 # 24817

Comment by Brian C

Don,Thanks for the info I will do that for my final frame weld.

2015-03-22 21:56:37 # 24833

Comment by Dennis Thomas

looking good!

2015-03-22 22:15:10 # 24834

Comment by Brian S

Hi Brian..If you measure the diagonals then hold the frame in place with tie down straps i found this also works when welding..Cheers Brian S..

2020-09-27 12:41:55 # 66380

Comment by Alan Geddes

Tack and cool tack and cool. Heat is not your friend and clamps are
