Someone Said I Oughta, So I Did

greg sterling — Posted on The Triumph Experience
Tuesday December 3, 2019 6:44 PM

Someone said I should create a journal for this build to possibly help others, so I will start posting items and see what happens. Don't usually like to post stuff about anything I am doing, especially till it is all done and beautiful (or at least runs)!

I reserve the right to discontinue if all this posting stuff becomes too much of a PITA.

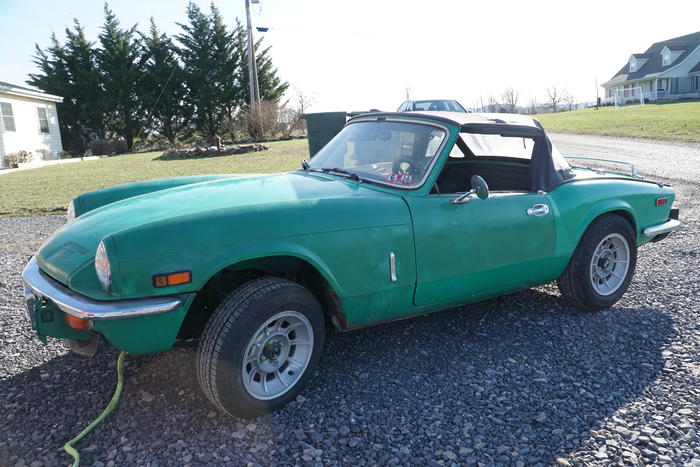

Pics below are "as purchased" with a Miata 2.0 L from a 2007 Miata NC with 6 speed manual transmission.

DSC00006

IMG 0266

IMG 0265

IMG 0267

Member Comments on Journal Entry: Someone Said I Oughta, So I Did ↵

2019-12-06 14:02:02 # 60328

Comment by Thaniel Smith

Looks like an interesting project. Thanks for sharing. Gives me ideas :-)

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Mounts And Frame Reinforcing.

greg sterling — Posted on The Triumph Experience
Tuesday December 3, 2019 6:52 PM

Came with engine harness and inside harness, but needed front harness to get all required inputs into ECU. As received motor mounts shown in pic, but I opted for a heavier duty "fail safe" type mount and re-did them. There was no tranny mount, and frame needed a lot of notching and then reinforcing to make things fit.

IMG 0267

IMG 0268

IMG 0409

IMG 0410

Member Comments on Journal Entry: Mounts And Frame Reinforcing. ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

R-160 Subaru Differential With GT6 MGF CV Hubs

greg sterling — Posted on The Triumph Experience
Tuesday December 3, 2019 7:04 PM

Still in process on this. Just took GT6 rotoflex uprights down to a machine shop today to have them machined for MGF CV axle sealed bearings. Will then need to get custom axles from that into stock Subaru R-160 inboard CV.
Deleted transverse spring, going with adjustable upper arms and coil overs.

Setting it up on a cut section of rear frame with the intent to be able to just drill and bolt the resulting design into existing frame. Coil overs will go from shock mounting point on frame to the shock bolt that sticks out of the GT6 upright. Needs to be custom shock and spring to fit the application.

IMG 0650

IMG 0651

Member Comments on Journal Entry: R-160 Subaru Differential With GT6 MGF CV Hubs ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Steering Column Was Fun...

greg sterling — Posted on The Triumph Experience
Tuesday December 3, 2019 7:06 PM

Of course, the steering column had interfere with the starter motor (or vice versa). Had to make a drop link steering chain arrangement.

5/22: abandoned chain arrangement, a bit too much play. Ordered 2 u joints and a section of shaft to do same thing. Pics as available.

Actually only need one u-joint. Was able to space steering wheel down from dash enough to make angle reasonable, but still move exit point through firewall down far enough to clear starter motor on Miata motor.

IMG 0401

IMG 0403

Member Comments on Journal Entry: Steering Column Was Fun... ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Wiring Was Fun...

greg sterling — Posted on The Triumph Experience
Monday March 16, 2020 6:40 PM

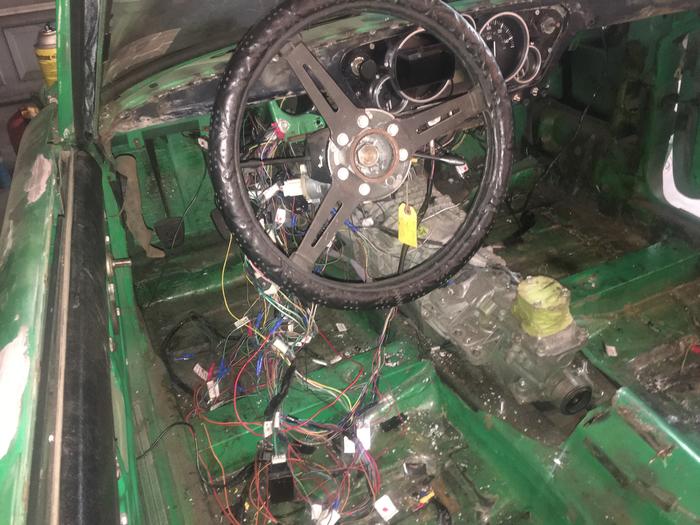

Miata fuse box and relays, ECU. Some Spitfire wiring to rear front and rear lights, wipers, headlight switch, heater, etc hybrid.

All the lights, turn signals, horn, etc work. Still need to lay in a circuit for the door poppers and do some final clean up.

IMG 0986

IMG 0988

IMG 1049

Member Comments on Journal Entry: Wiring Was Fun... ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Starts Right Up And Runs !

greg sterling — Posted on The Triumph Experience
Monday March 16, 2020 6:49 PM

Initially it would only run briefly. Had to do a little nutzing around to determine that the very temporary inlet tube I was using allowed me to install the MAF sensor backwards. Once I flipped direction, started and ran fine !

Tried to post a video, but file size did not allow.

First photo is of engine bay when I was first able to get it to start and run. The MAF sensor was just stuck in a scissor hole in a piece of corrugated plastic air inlet tubing. Other pics show cleaned up version of engine bay and bonnet closing properly over the whole mess !

IMG 0986

IMG 1072

IMG 1073

IMG 1076

Member Comments on Journal Entry: Starts Right Up And Runs ! ↵

Rated 8 out of 10 based on 1 ratings

2020-03-16 20:32:47 # 62088

Comment by Michael Norwood

Rating: 8/10

Nice
