Motor Is In!!

Ga Midget Thomas — Posted on The MG Experience
Thursday April 11, 2013 7:31 PM

I had to cut the foot well side walls. Relocate frame rails. Cut out the transmission tunnel. And weld in new panels. In addition to making new motor and trans mounts. Alot of fabrication to fit a Chevy 2.5 "iron duke" motor. I also added the brake2 master cylinder and clutch master cylinder from the S10 donor vehicle. Had to fabricate mounts and linkage. I will be using the S10 radiator as well. I need to have it narrowed 4.5" to clear tires. And run an electric fan. The to do list goes on but alot of work is completed. Stay tuned...

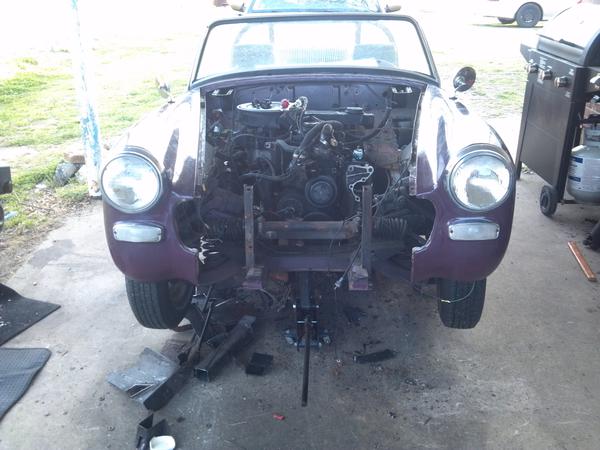

Below hood line!

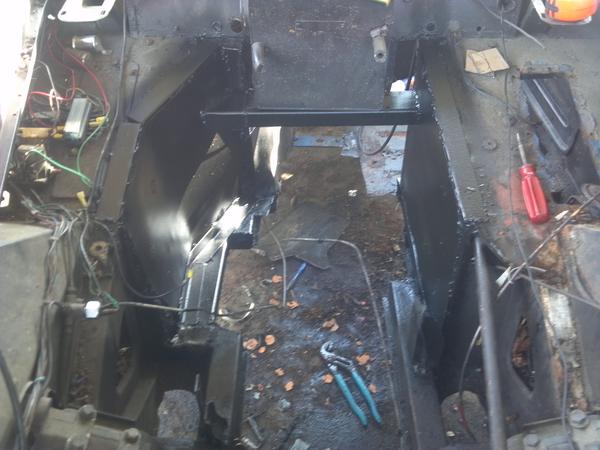

Sheetmetal changes

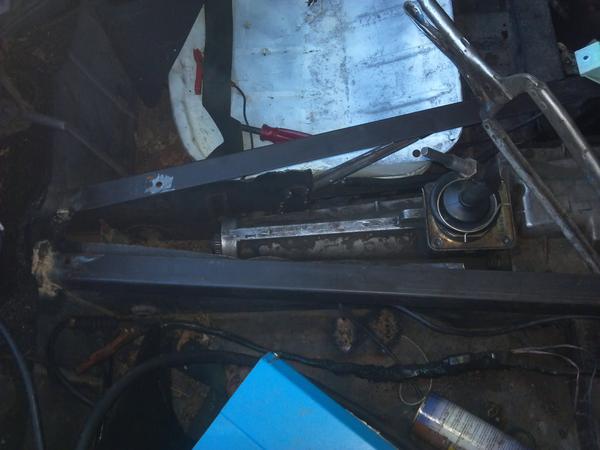

Tunnel

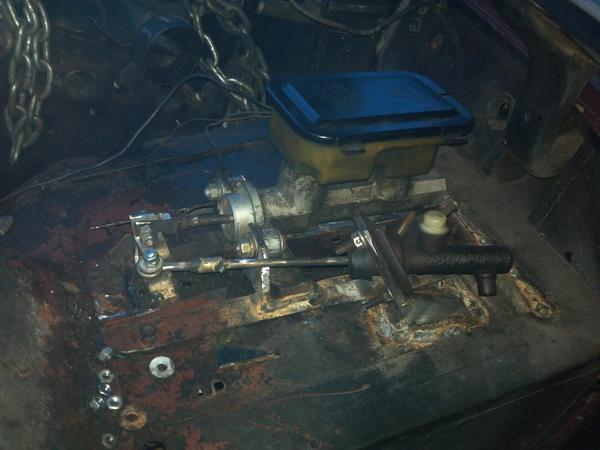

Master cylinders
