Registry: 1962 Triumph TR3B

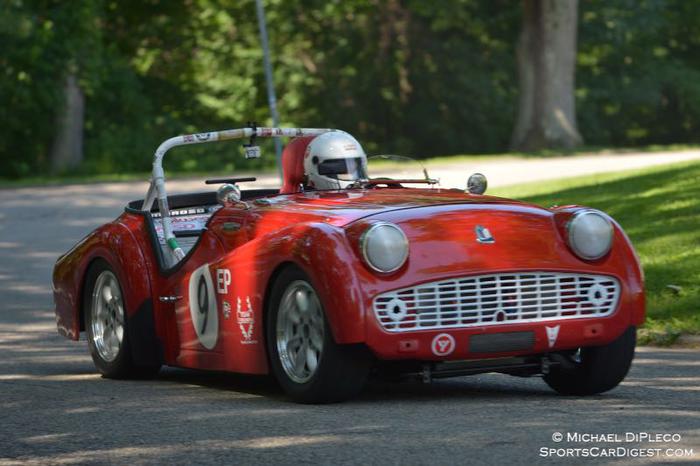

John Styduhar's 1962 Triumph TR3B

or to vote for this race car or leave a comment

Vehicle Information

Owner:

John Styduhar [johnstydo]

Location:

Hermitage, PA, USA

Status:

Racer, Running

VIN:

TCF1610L

Model Year:

1962

Current Colour:

red

Last Updated:

2017-08-01 20:40:58

Magic VIN Decoder
TCF1610L Make: Triumph Model: TR6 Model Year: 1973 Fuel Delivery: Carburetor Car Number: 1610 Engine Code: Not Set These are "best guesses" based only on the VIN, completeness & accuracy are not guaranteed. Information entered by the owner should take precedence.

Member Comments on Registry: 1962 Triumph TR3B ↵

Rated 9.3 out of 10 based on 3 ratings

2017-08-10 08:36:19 # 44085

Comment by Peter H

Stance on this car is sic... Great looking suspension John

2017-08-10 09:34:21 # 44086

Comment by John Styduhar

The front suspension parts are TR6 and lowers the front by an inch. Front springs are competition items from TSI. Camber is set at neg. 3.5 deg. The rear axle perches have aluminum spacers and lower the rear axle by almost an inch. Tires are Hoosier Speedsters 205/60 15 on 5.5 inch wide rims.

2017-08-10 10:42:13 # 44087

Comment by Peter H

205"s on 5.5" rims is a strong shoe horn. The 60 gives some room to stretch

. Nice to have all 4 tires the same size so you can rotate front to back and left to right. -3.5 camber is TURN IN ready. Drop links or upper camber plates to get that much ?

2017-08-10 12:41:14 # 44091

Comment by John Styduhar

I modified the inner end of the unequal length upper A arms so they are adjustable for camber setting. I'm using CRMO rod ends on the upper trunnion. I also have the alignment set with a slight toe out. That make the front end really dig in around the turns. Also using a TR7 rack and pinion with TR6 tie rod ends and TR4 steering arms so the steering is nice and quick.

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Vehicle History

This vehicle's information was last updated on 2017-08-01 20:40:58

Ownership History

Date	Owner ID	Notes
Aug 1, 2017	John Styduhar	Added to Registry (ID 39379)

If this vehicle has been sold and you are the new owner, sign up to become a member (or if you're already a member, make sure you are signed in) and ask the current owner to click the "Transfer Vehicle" button from this car's page. If you have any difficulty with the process, please contact the webmaster.
